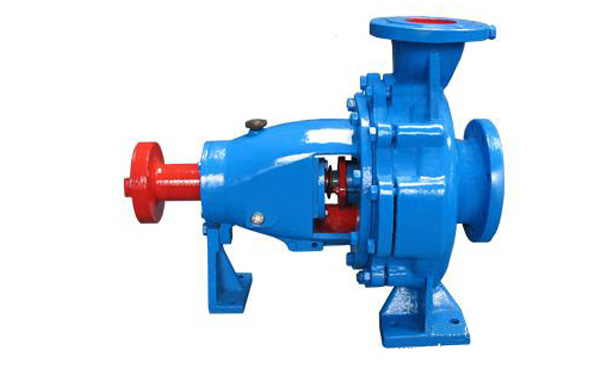

IS型清水泵

點擊次數：137 更新時間2016-06-08 【關閉】分享:

型號	流量 (m³/h)	揚程 (m)	電機功率 (KW)	轉速 (r/min)	進出口徑 (mm)
IS50-32-125	7.5 12.5 15	22 20 18.5	2.2	2900	50/32
IS50-32-125	3.8 6.3 7.5	5.4 5.0 4.6	0.55	1450	50/32
IS50-32-125A	6.7 11.2 13.5	17.5 16 14.7	1.5	2900	50/32
IS50-32-125A	3.4 5.6 6.7	4.3 4.0 3.7	0.55	1450	50/32
IS50-32-160	7.5 12.5 15	34.3 32 29.6	3	2900	50/32
IS50-32-160	3.8 6.3 7.5	8.5 8.0 7.5	0.55	1450	50/32
IS50-32-160A	7.0 11.7 14	30 28 26	2.2	2900	50/32
IS50-32-160A	3.5 5.9 7.0	7.4 7.0 6.6	0.55	1450	50/32
IS50-32-160B	6 10 12	25.8 23 21	1.5	2900	50/32
IS50-32-160B	3.0 5.4 6.5	6.4 6.0 5.6	0.55	1450	50/32
IS50-32-200	7.5 12.5 15	52.5 50 48	5.5	2900	50/32
IS50-32-200	3.8 6.3 7.5	13.1 12.5 12	0.75	1450	50/32
IS50-32-200A	7.0 11.7 14	45.3 44 41.5	4	2900	50/32
IS50-32-200A	3.5 5.9 7.0	11.3 11 10.4	0.55	1450	50/32
IS50-32-200B	6.5 10.8 13	39.6 37.5 36	3	2900	50/32
IS50-32-200B	3.3 5.4 6.5	9.9 9.5 9.1	0.55	1450	50/32
IS50-32-250	7.5 12.5 15	82 80 78.5	11	2900	50/32
IS50-32-250	3.8 6.3 7.5	20.5 20 19.5	1.5	1450	50/32
IS50-32-250A	7.0 11.7 14	72 70 68.5	7.5	2900	50/32
IS50-32-250A	3.5 5.9 7.0	18 17.5 16.5	1.1	1450	50/32
IS50-32-250B	6 10 12	61.5 60 58.5	5.5	2900	50/32
IS50-32-250B	3.2 5.4 6	15.3 15 13.8	0.75	1450	50/32

IS65-50-125	15 25 30	21.8 20 18.5	3	2900	65/50
IS65-50-125	7.5 12.5 15	5.35 5 4.7	0.55	1450	65/50
IS65-50-125A	13.5 22.4 27	17.7 16 15	2.2	2900	65/50
IS65-50-125A	6.7 11.2 13.5	4.3 4 3.8	0.55	1450	65/50
IS65-50-125B	12.6 21 25.2	14.8 13.5 12.5	1.5	2900	65/50
IS65-50-160	15 25 30	35 32 30	5.5	2900	65/50
IS65-50-160	7.5 12.5 15	8.8 8 7.2	0.75	1450	65/50
IS65-50-160A	14 23.4 28	30.5 28 26.3	4	2900	65/50
IS65-50-160A	7 11.7 14	7.6 7 6.3	0.55	1450	65/50
IS65-50-160B	13 21.7 26	26.3 24 22.5	3	2900	65/50
IS65-50-160B	6.5 10.8 13	6.57 6 5.63	0.55	1450	65/50

IS65-40-200	15 25 30	53 50 47	7.5	2900	65/40
IS65-40-200	7.5 12.5 15	13.2 12.5 11.8	1.1	1450	65/40
IS65-40-200A	14 23.4 28	46.2 44 41	5.5	2900	65/40
IS65-40-200A	7 11.7 14	11.5 11 10.3	0.75	1450	65/40
IS65-40-200B	12.6 21 24	37 35.3 33	4	2900	65/40
IS65-40-200B	6.3 10.5 12.6	9.1 8.6 8	0.55	1450	65/40
IS65-40-250	15 25 30	82 80 78	15	2900	65/40
IS65-40-250	7.5 12.5 15	21 20 19.4	2.2	1450	65/40
IS65-40-250A	14 23.4 28	72 70 68.5	11	2900	65/40
IS65-40-250A	7 11.7 14	18 17.5 17	1.5	1450	65/40
IS65-40-250B	12.5 21 25	59 56 53.5	7.5	2900	65/40
IS65-40-250B	6 10 12	15.5 14 13.5	1.1	1450	65/40
IS65-40-315	15 25 30	127 125 123	30	2900	65/40
IS65-40-315	7.5 12.5 15	32.3 32 31.7	4	1450	65/40
IS65-40-315A	14.3 23.9 28.7	115.4 114 112.6	22	2900	65/40
IS65-40-315A	7 11.7 14	29 28.5 28	3	1450	65/40
IS65-40-315B	13.6 22.7 27.2	104.7 103 101	18.5	2900	65/40
IS65-40-315B	6.5 10.8 13	26.2 24 23	2.2	1450	65/40
IS65-40-315C	12 20 24	92.5 92 89	15	2900	65/40
IS65-40-315C	6 10 12	23 22.5 22	2.2	1450	65/40

IS80-65-125	30 50 60	22.5 20 18	5.5	2900	80/65
IS80-65-125	15 25 30	5.6 5 4.5	0.75	1450	80/65
IS80-65-125A	26.8 44.7 53.6	18 16 14.4	4	2900	80/65
IS80-65-125A	13.4 22.4 26.9	4.5 4 3.6	0.55	1450	80/65
IS80-65-125B	26 43.4 52	16.4 14.6 13.1	3	2900	80/65
IS80-65-160	30 50 60	36 32 29	7.5	2900	80/65
IS80-65-160	15 25 30	9 8 7.2	1.5	1450	80/65
IS80-65-160A	27 45 54	30.5 27 24.5	5.5	2900	80/65
IS80-65-160A	14 23.4 28.1	7.9 7 6.3	1.1	1450	88/65
IS80-65-160B	24 40 48	25 22 19.5	4	2900	80/65
IS80-65-160B	13 21.7 26	6.8 6 5.4	0.75	1450	80/65
IS80-50-200	30 50 60	53 50 47	15	2900	80/50
IS80-50-200	15 25 30	13.2 12.5 11.8	2.2	1450	80/50
IS80-50-200A	28.1 46.8 56.2	46.6 44 41.4	11	2900	80/50
IS80-50-200A	14 23.4 28	11.6 11 10.4	1.5	1450	80/50
IS80-50-200B	25 41.5 50	40.2 38 35.7	7.5	2900	80/50
IS80-50-200B	12.5 20.5 25	10 9.5 9	1.1	1450	80/50
IS80-50-250	30 50 60	84 80 75	22	2900	80/50
IS80-50-250	15 25 30	21 20 18.8	3	1450	80/50
IS80-50-250A	28.1 46.8 56.2	73.6 70 65.7	18.5	2900	80/50
IS80-50-250A	14 23.4 28	18.4 17.5 16	2.2	1450	80/50
IS80-50-250B	26 23.3 52	63 60 56.2	15	2900	80/50
IS80-50-250B	12 20 24	15.75 15 12.5	1.5	1450	80/50
IS80-50-315	30 50 60	128 125 123	37	2900	80/50
IS80-50-315	15 25 30	32.5 32 31.5	5.5	1450	80/50
IS80-50-315A	28.7 47.7 57.3	116.9 114 112.3	37	2900	80/50
IS80-50-315A	14.3 23.8 28.7	29.2 28.5 28	5.5	1450	80/50
IS80-50-315B	27.2 45.4 54.5	105.5 103 101.4	30	2900	80/50
IS80-50-315B	13.6 22.7 27.2	26.4 25.8 25.4	4	1450	80/50
IS80-50-315C	24 40 48	92 89 87	22	2900	80/50
IS80-50-315C	12.9 20 24	23.5 23 22	3	1450	80/50
IS100-80-125	60 100 120	24 20 18.5	11	2900	100/80
IS100-80-125	30 50 60	6 5 4	1.5	1450	100/80
IS100-80-125A	53.7 93.5 107.5	19.2 17 14.8	7.5	2900	100/80
IS100-80-125A	26.9 44.7 53.7	4.8 4 3.7	1.1	1450	100/80
IS100-80-160	60 100 120	38 32 28	15	2900	100/80
IS100-80-160	30 50 60	9.2 8 6.8	2.2	1450	100/80
IS100-80-160A	56.1 93.5 112.2	33.2 28 24.5	11	2900	100/80
IS100-80-160A	28.1 46.8 56.1	8 7 6	1.5	1450	100/80
IS100-80-160B	50 83 100	28.4 22 19	7.5	2900	100/80
IS100-80-160B	24.5 41 49	6.8 5.3 4.5	1.1	1450	100/80
IS100-65-200	60 100 1200	54 50 47	22	2900	100/65
IS100-65-200	30 50 60	13.5 12.5 11.8	4	1450	100/65
IS100-65-200A	56 93.5 112.5	47.6 44 41.4	18.5	2900	100/65
IS100-65-200A	28 46.8 56	11.9 11 10.4	3	1450	100/65
IS100-65-200B	52 86.6 104	41 38 35.7	15	2900	100/65
IS100-65-200B	26 43.3 52	10.3 9.5 9.0	2.2	1450	100/65
IS100-65-250	60 100 120	87 80 74.5	37	2900	100/65
IS100-65-250	30 50 60	21.3 20 19	5.5	1450	100/65
IS100-65-250A	56.1 93.5 112	76 70 65	30	2900	100/65
IS100-65-250A	28 46 55	18.6 17.5 16	4	1450	100/65
IS100-65-250B	47.5 79 95	65.3 60 54	22	2900	100/65
IS100-65-250B	24.5 41 49	16 15 13.5	3	1450	100/65
IS100-65-315	60 100 120	133 125 118	75	2900	100/65
IS100-65-315	30 50 60	34 32 30	11	1450	100/65
IS100-65-315A	56 94 112	116 109 103	55	2900	100/65
IS100-65-315A	28 47 56	29.7 27.9 26	7.5	1450	100/65
IS100-65-315B	52.4 87.4 105	102 95.7 90.3	45	2900	100/65
IS100-65-315B	26.2 43.7 52.5	26 24.5 23	7.5	1450	100/65
IS100-65-315C	48.6 81 97.2	87.3 82 77	37	2900	100/65
IS100-65-315C	24.3 40.5 48.6	22.3 21 20	5.5	1450	100/65
IS125-100-200	120 200 240	57.5 50 44.5	45	2900	125/100
IS125-100-200	60 100 240	14.5 12.5 11	7.5	1450	125/100
IS125-100-200A	112.5 187 225	50.5 44 39	37	2900	125/100
IS125-100-200A	56 93.5 112.5	12.7 11 9.7	5.5	1450	125/100
IS125-100-200B	95 158 190	42 35 30.5	22	2900	125/100
IS125-100-200B	52 86.5 104.7	11 9.5 8.4	4	1450	125/100
IS125-100-250	120 200 240	87 80 72	75	2900	125/100
IS125-100-250	60 100 120	21.5 20 18.5	11	1450	125/100
IS125-100-250A	112 187 220	76 70 63	55	2900	125/100
IS125-100-250A	56 93.5 112	18.8 17.5 16.2	7.5	1450	125/100
IS125-100-250B	104 173 206	65.3 60 54	45	2900	125/100
IS125-100-250B	52 86.5 104	16 15 13.5	5.5	1450	125/100
IS125-100-250C	96 160 192	53.5 49 44	37	2900	125/100
IS125-100-315	120 200 240	133 125 120	110	2900	125/100
IS125-100-315	60 100 120	33.5 32 30.5	15	1450	125/100
IS125-100-315A	114 191 229	121 114 109	110	2900	125/100
IS125-100-315A	57 95.5 114	30.5 28.5 27.5	15	1450	125/100
IS125-100-315B	108 181.6 218	109.8 103 99	90	2900	125/100
IS125-100-315B	54 90 107	27.6 25.8 24.5	11	1450	125/100
IS125-100-315C	103 171.6 206	98 92 88	75	2900	125/100
IS125-100-315C	51.4 85.8 103	24.7 23 22.5	11	1450	125/100
IS125-100-400	60 100 120	52 50 48.5	30	1450	125/100
IS125-100-400A	56.3 93.5 112.6	45.7 44 42.7	22	1450	125/100
IS125-100-400B	52 86.5 104	39.5 38 37	18.5	1450	125/100
IS150-125-250	120 200 240	22.5 20 17.5	18.5	1450	150/125
IS150-125-250A	112 187 224.7	19.7 17.5 15.3	15	1450	150/125
IS150-125-250B	104 173 206	16.9 15 13	11	1450	150/125
IS150-125-315	120 200 240	34 32 29	30	1450	150/125
IS150-125-315A	112 187 224	29.7 28 25.3	22	1450	150/125
IS150-125-315B	104 173 208	25.5 24 21.7	18.5	1450	150/125
IS150-125-400	120 200 240	53 50 46	45	1450	150/125
IS150-125-400A	112 187 225	46.6 44 40.4	37	1450	150/125
IS150-125-400B	14 173 208	40.3 38 35	30	1450	150/125
IS200-150-250	240 400 460	22.5 20 17.5	37	1450	200/150
IS200-150-250A	225 374 430	19.7 17.5 15.3	30	1450	200/150
IS200-150-250B	209 346 400	16.9 15 13.1	22	1450	200/150
IS200-150-315	240 400 460	37 32 28.5	55	1450	200/150
IS200-150-315A	225 374 430	32.5 28 25	45	1450	200/150
IS200-150-315B	209 346 400	28 24 21.4	37	1450	200/150
IS200-150-400	240 400 460	55 50 45	90	1450	200/150
IS200-150-400A	225 374 430	48.4 44 39.6	75	1450	200/150
IS200-150-400B	209 346 400	41.8 38 34	55	1450	200/150
IS200-150-400C	194 324 372	34 30.8 27.8	45	1450	200/150
